雙風選+振動篩清選機 Double Air Screen Cleaner

物wu料liao通tong過guo提ti升sheng機ji或huo螺luo旋xuan輸shu送song機ji進jin入ru前qian端duan垂chui直zhi風feng篩shai，此ci風feng選xuan可ke根gen據ju雜za質zhi與yu物wu料liao的de不bu同tong比bi例li去qu除chu輕qing雜za質zhi。然ran後hou進jin入ru振zhen動dong篩shai，根gen據ju不bu同tong粒li徑jing的de顆ke粒li
，采cai用yong不bu同tong類lei型xing的de高gao精jing度du衝chong孔kong篩shai進jin行xing大da小xiao雜za質zhi的de清qing洗xi。最zui後hou物wu料liao進jin入ru後hou端duan空kong氣qi篩shai，二er次ci風feng選xuan擇ze可ke進jin一yi步bu去qu除chu殘can留liu的de輕qing雜za質zhi。

特點：

1.除輕雜效果好：前後雙吸風道，輕雜、粉塵等雜質經過二次空氣清潔器，去除更徹底。

2.兩個空氣濾網對稱布置，單獨控製。

3.後端風篩在二次風選擇時
，會去除一些土塊產生的灰塵，從而提高成品的亮度。

4.大篩麵設計1.25m×2.4m
，多功能，易換篩。

5.鬥式提升機
、螺旋輸送機可根據不同物料選用。

6.本清選機適用於葵花籽、瓜子、蕎麥
、亞麻籽、芝麻籽等高雜質物料。

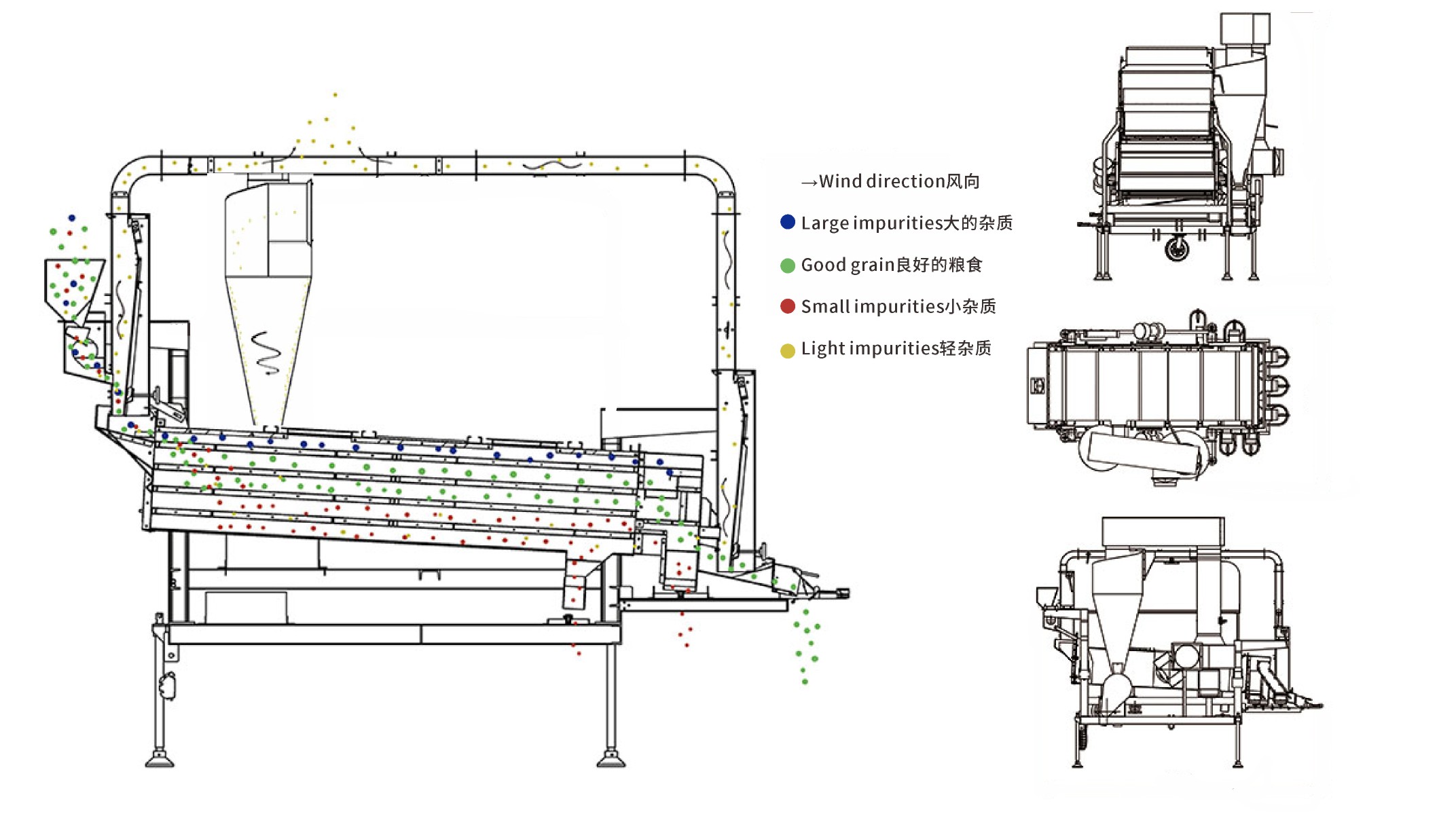

Materials enter the front-end vertical air screen through elevator or screw conveyor, this wind selection can remove light impurities according to the different proportion of impurities and materials. Then the materials enter vibration sieve, which can clean big and small impurities by different types of highly precise punching sieve in accordance with different sizes of grains. Finally materials enter the back-end air screen; the secondary wind selection can remove the remnant light impurities further.

Feature：

1.Good effect of removing light impurities: front and rear double suction ducts, light impurities, dust and other impurities are removed more thoroughly through secondary air cleaner.

2.The two air screens arrange symmetrically and control individually.

3.The back-end air screen will remove some dust produced by some clods in the secondary wind selection, thus enhancing the brightness of finished product.

4.Large sieve surface design of 1.25m×2.4m, multi-function and easy to change sieves.

5.Bucket elevator and screw conveyor can be chosen in accordance with different materials.

6.This cleaner is suitable for materials with high impurities, such as sunflower seed, melon seed, buckwheat, flax seed, sesame seed, etc.
